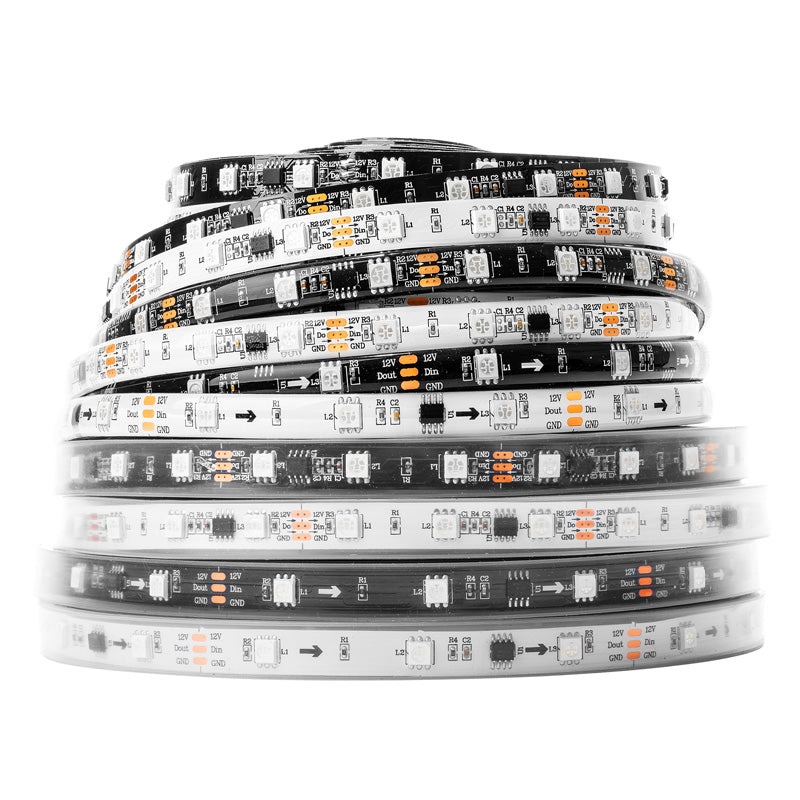

The WS2811 Addressable RGB LED (12V) is a digitally controlled color-changing LED that allows individual addressing of each LED in the strip or module. Controlled via a single data line, these LEDs enable vibrant multi-color effects, animations, and precise brightness control using any compatible microcontroller like Arduino, ESP32, or Raspberry Pi.
Each LED contains a built-in WS2811 driver IC and is designed to operate on 12V, making it more tolerant to voltage drops over longer runs compared to 5V variants. These LEDs are ideal for use in decorative lighting, displays, signage, DIY projects, and more.
Key Features
-
Individually addressable RGB LEDs
-
Based on WS2811 driver IC
-
Operates at 12V DC (ideal for longer strips)
-
Single-wire serial data communication
-
Full 24-bit color control (16.7 million colors)
-
Compatible with Arduino, ESP32, Raspberry Pi
-
Ideal for lighting effects, displays, holiday lighting, DIY
Specifications
| Parameter | Value |
|---|---|
| LED Type | WS2811 Addressable RGB |
| Operating Voltage | 12V DC |
| Color Depth | 24-bit (RGB – 8 bits per channel) |
| Communication | Single-wire serial (PWM-based) |
| IC Type | WS2811 (external or integrated) |
| Power Consumption | Approx. 0.3W per LED (max brightness) |
| Control Compatibility | Arduino, ESP8266/ESP32, Raspberry Pi |
| Applications | LED signage, animation, decorative lighting, DIY electronics |
Package Includes
-
1 × WS2811 Addressable RGB LED (12V)
