MG996R Digital High Torque Servo Motor

  1. Weight: 55g
  2. Dimension: 40.7×19.7×42.9mm
  3. Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
  4. Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
  5. Operating voltage: 4.8 ~ 6.6V
  6. Gear Type: Half-Metal gear
  7. Dead band width: 1us
  8. Wire length: 32cm
SKU: AA224

225,00 EGP

In stock

In stock

4 People watching this product now!

Payment Methods:

Description

TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.

When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.

Wire Description

  • Red – Positive
  • Brown – Negative
  • Orange – Signal




Features:

  1. Gear Type: Metal gear
  2. Servo Plug: JR (Fits JR and Futaba)
  3. Servo arms & screws included, and fit with Futaba servo arm
  4. It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec , GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
  5. CE & RoHS approved
  6. We have upgraded our servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.

Package Includes:

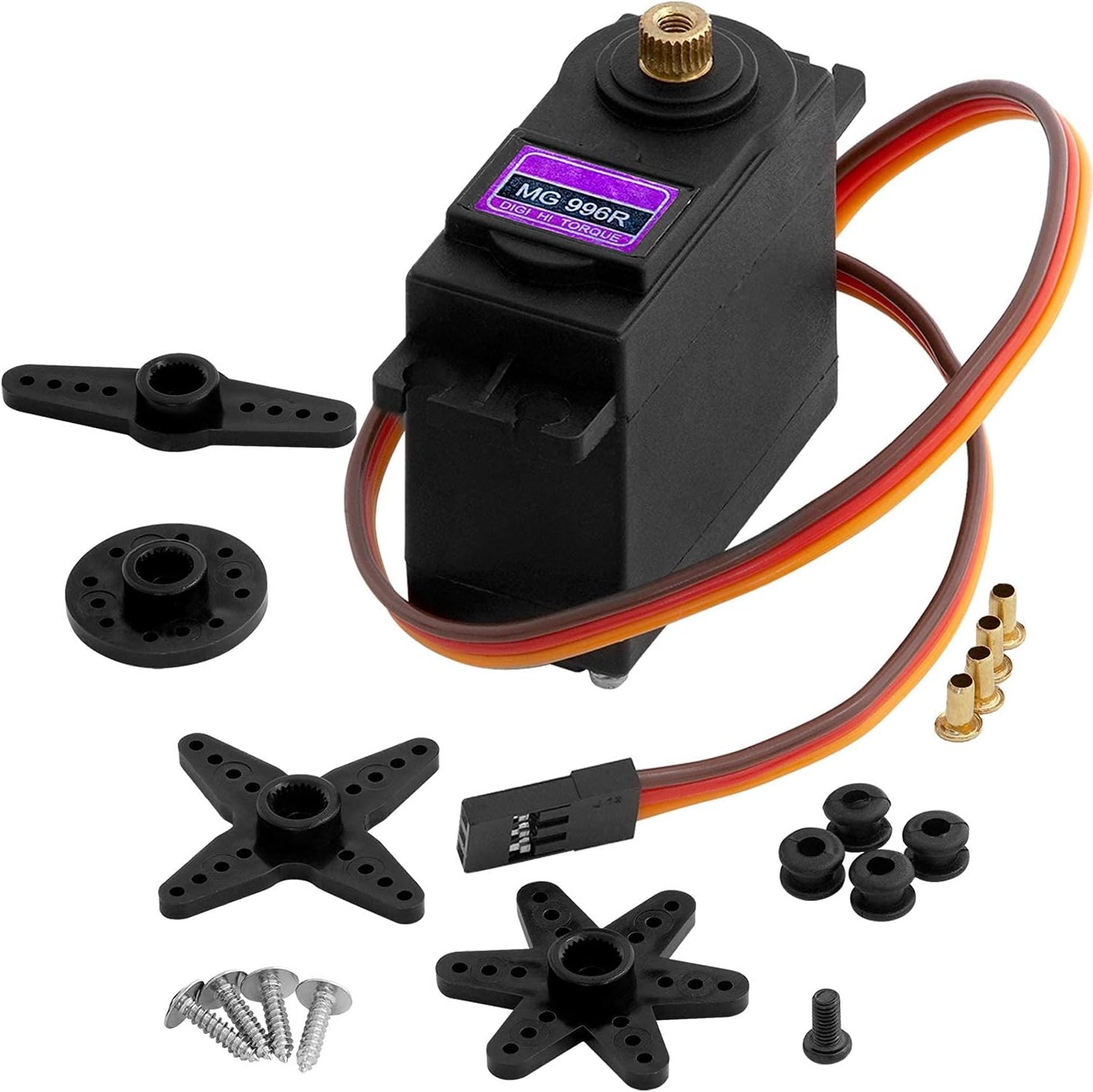

1 x TowerPro MG996R Digital High Torque Servo Motor and Accessories Parts(as shown in the image)

Specification

General

Weight Weight 55,0000 g
operating-voltage-vdc

4.8 ~ 6.6

temperature-range

0- 55℃

stall-torque-4-8v-kg-cm

9.40

stall-torque-6-6v-kg-cm

11

operating-speed-4-8v

0.19sec/60°

operating-speed-6-6v

0.15sec/60°

dead-bandwidth

1uS

gear-type

Half Metal

no-of-teeth

25

angle

0~180°
