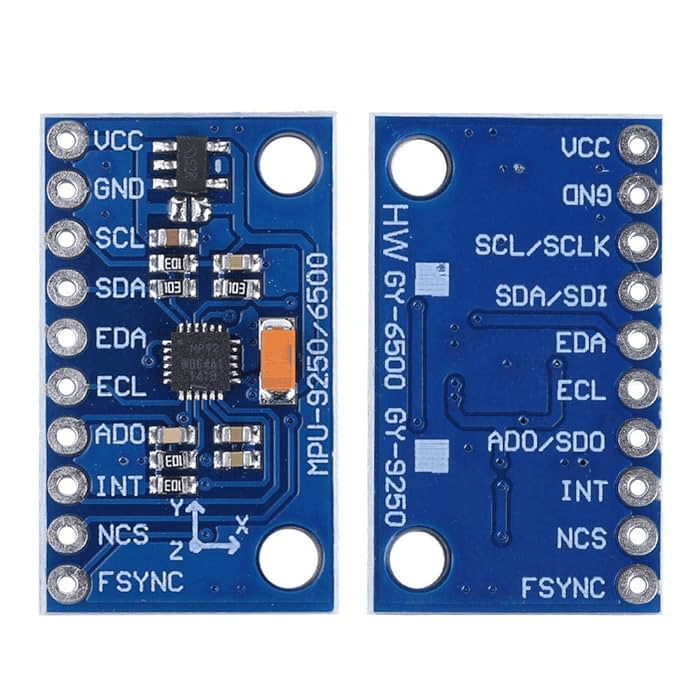

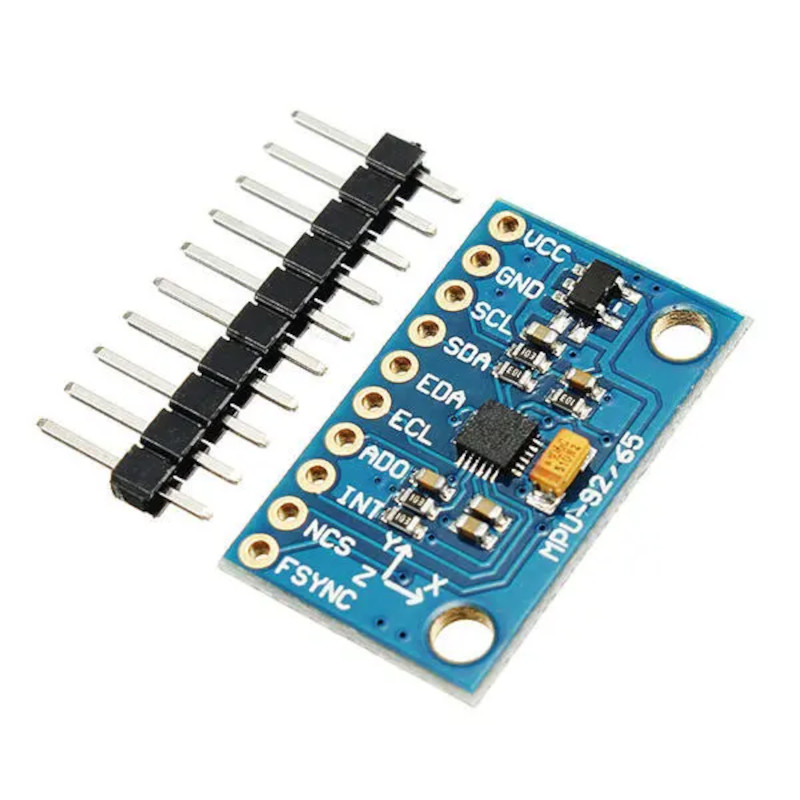

IMU 9-DOF MPU-9250 9-Axis Attitude Gyroscope Accelerator Magnetometer Sensor Module

The MPU GY-6500 is a high-performance 6-axis motion tracking sensor module that combines a 3-axis gyroscope and a 3-axis accelerometer. This module is designed to measure angular velocity and acceleration, making it ideal for applications such as motion sensing, robotics, and navigation systems. It communicates with microcontrollers using the I2C protocol, offering easy integration with various development boards like Arduino and Raspberry Pi.

The MPU GY-6500 module uses the popular MPU-6050 sensor, which is widely known for its reliability and low power consumption. With a small form factor, it is suitable for a wide range of applications requiring motion tracking and orientation detection.

Specifications:

• Sensor Type: 6-axis (3-axis Gyroscope and 3-axis Accelerometer)

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g (programmable)

• Gyroscope Range: ±250°/s, ±500°/s, ±1000°/s, ±2000°/s (programmable)

• Communication Protocol: I2C (Inter-Integrated Circuit)

• Operating Voltage: 3.3V to 5V

• Power Consumption: Low power design for energy-efficient applications

• Temperature Range: -40°C to +85°C

• Dimensions: Compact size for easy integration into various systems

• Interface Pins: SDA, SCL, VCC, GND, and INT

• Mounting Options: Suitable for direct mounting on PCBs or breadboards

• Output Data Rate: Configurable from 3.9 to 1kHz

• Compatibility: Compatible with Arduino, Raspberry Pi, and other microcontroller platforms

Key Features:

• High-precision 6-axis sensor

• I2C communication for easy interfacing

• Wide range of selectable accelerometer and gyroscope sensitivities

• Low-power consumption ideal for portable and battery-operated projects

• Small, compact design for versatile use

• Reliable performance with adjustable output data rate

• Ideal for motion detection, robotics, drones, and wearable technology

Applications:

• Motion tracking systems

• Robotics and automation

• Inertial navigation

• Wearable technology (e.g., smartwatches, fitness trackers)

• Drone and UAV applications

• Gaming and virtual reality
