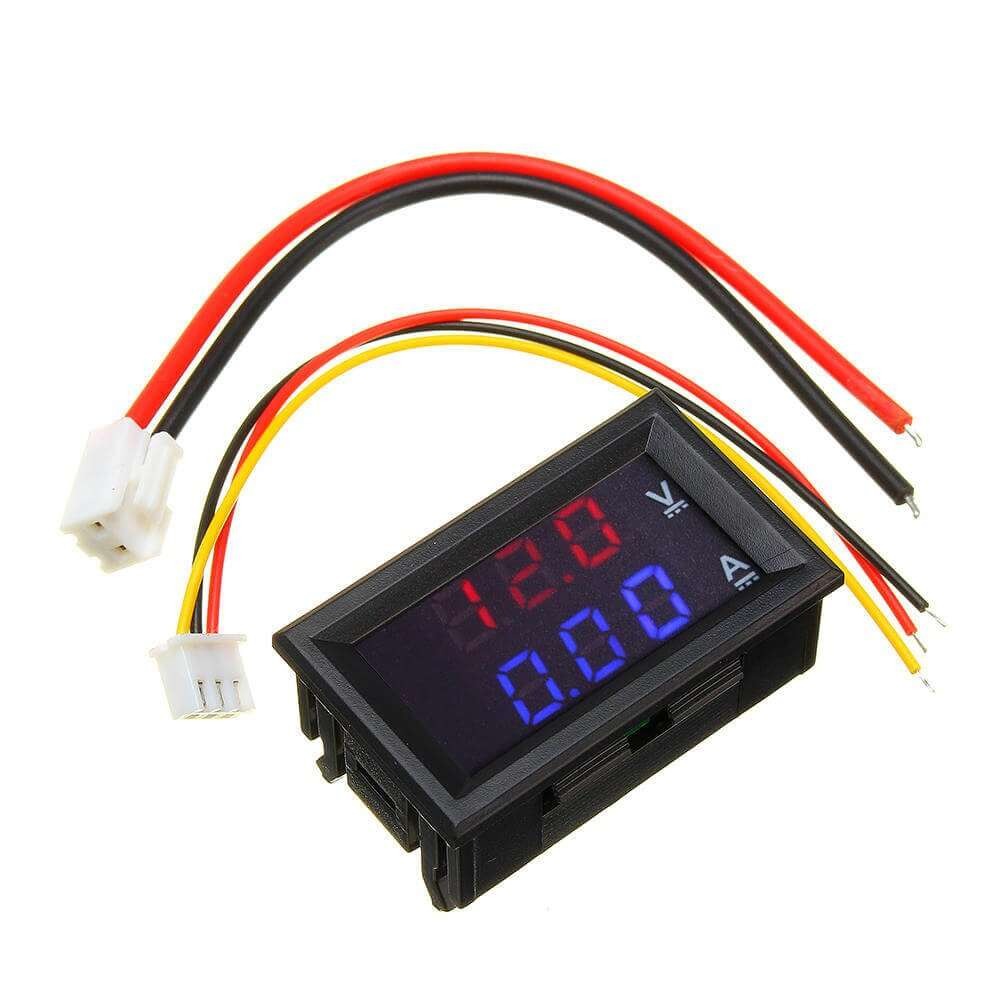

DC 0–100V 10A Digital Voltmeter & Ammeter – Dual LED Display
This compact and accurate Digital Voltmeter & Ammeter is a versatile module designed to monitor DC voltage (0–100V) and current (0–10A) in real-time. Featuring dual 3-digit LED displays, it shows both voltage and current readings simultaneously, making it ideal for power supplies, solar systems, battery monitoring, and various DIY electronics applications.
With its bright red and blue LED displays, this meter is easy to read even in low-light environments. It can be easily integrated into panels or enclosures and connects with simple wiring.
Key Features
-
Dual digital display: voltage (V) and current (A)
-
Measures 0–100V DC and up to 10A
-
Bright red (voltage) and blue (current) LED displays
-
Compact design, easy to mount on panels
-
Built-in shunt for current measurement
-
Reverse polarity protection
-
Ideal for DIY power supplies, battery testing, solar projects
Specifications
| Parameter | Value |
|---|---|
| Voltage Range | DC 0 – 100V |
| Current Range | 0 – 10A |
| Display Type | Dual 3-digit 7-segment LED |
| Voltage Display Color | Red |
| Current Display Color | Blue |
| Measurement Accuracy | ±1% |
| Power Supply | DC 4.5V – 30V (external supply) |
| Operating Temp. | -10°C to +65°C |
| Dimensions | ~48mm × 29mm × 22mm |
| Mounting Cutout | ~45mm × 26mm |
| Included Components | Current shunt (usually built-in or external) |
Package Includes
1 × DC 0–100V 10A Dual Display Digital Voltmeter & Ammeter
