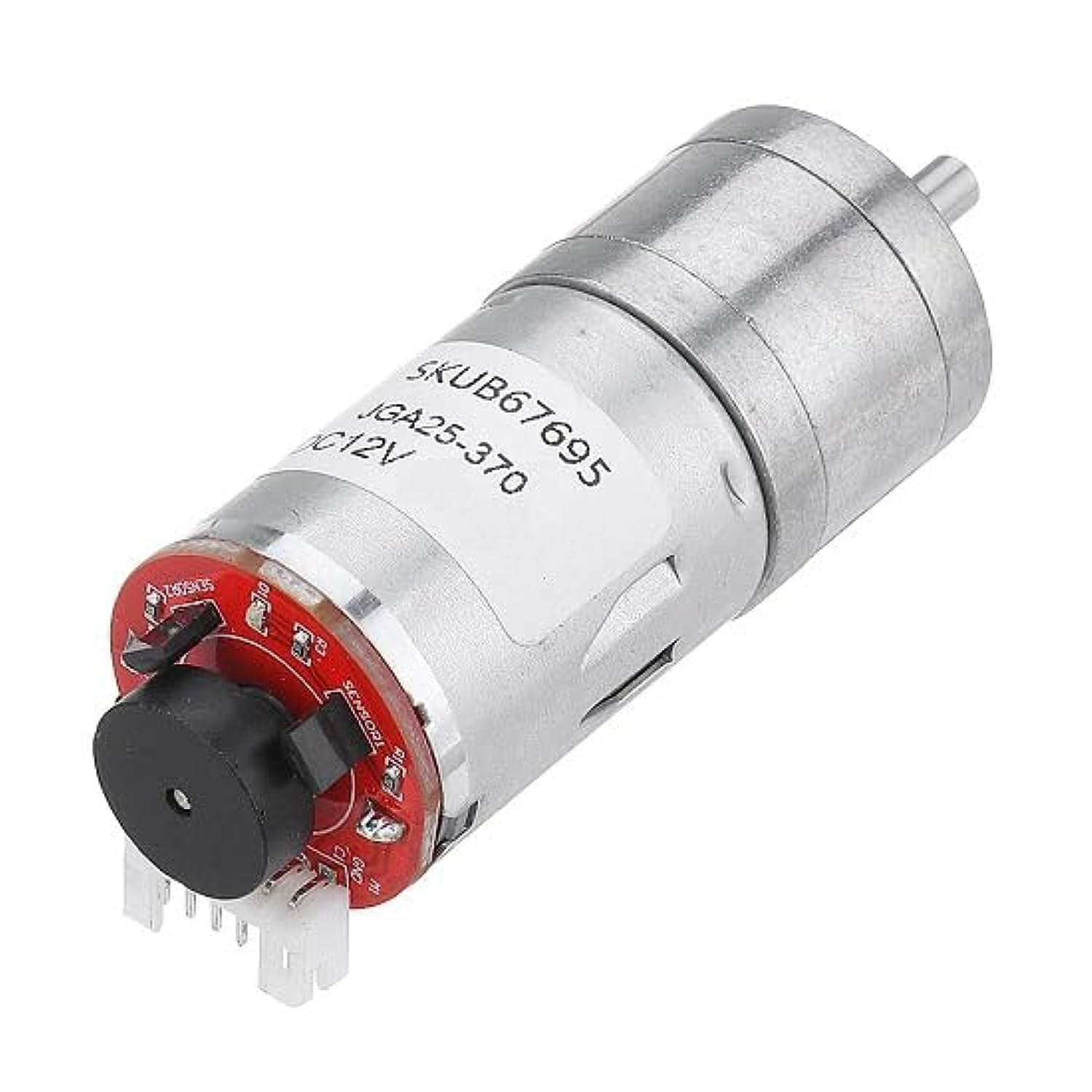

The 25GA370 DC Gear Motor with Encoder is a high-quality, compact motor designed for precision control in robotics, automation, and DIY electronics. Operating at 12V DC, it delivers 250RPM with high torque, while the built-in encoder allows for accurate speed and position feedback – ideal for applications requiring closed-loop control.
✅ Key Features:
-
12V DC motor with metal gearbox
-
250 RPM speed with strong torque output
-
Integrated dual-channel encoder for speed/position monitoring
-
Durable and compact 25mm diameter housing
-
Suitable for robotics, smart cars, CNC, and automation projects
Specifications:
| Feature | Details |
|---|---|
| Model | 25GA370 with Encoder |
| Rated Voltage | 12V DC |
| No-load Speed | ~250 RPM |
| Motor Type | Brushed DC |
| Gearbox | Metal planetary reduction gear |
| Shaft Diameter | 4mm (D-type) |
| Motor Diameter | 25mm |
| Encoder Type | Magnetic (dual channel) |
| Encoder Resolution | ~11 PPR (may vary by model) |
| Applications | Robotics, automation, smart systems |
